Operating Weight: 4,500 kg
Standard Bucket: 0.8 m3
Battery Capacity: 33 kWh

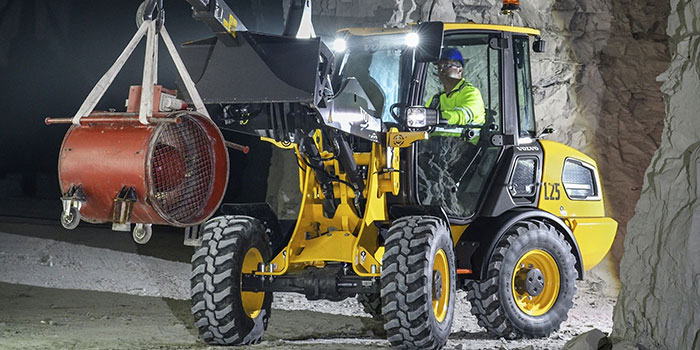

Introducing the Volvo L20 Electric Compact Wheel Loader, the latest addition to our ever-growing portfolio of electric machines, delivering the ultimate in sustainable, efficient and low-noise performance. Based on the proven concept of the larger L25 Electric, the L20 Electric is specifically designed for applications which require a 0.8m3 bucket capacity and is the perfect choice for confined and narrow spaces.
| Electric motor driveline (peak) | 37.55 hp |
| Electric motor working hydraulics (peak) | 42.91 hp |
| Standard bucket capacity | 1.05 yd3 |
| Kinematics with attachment bracket design | P |
| Tipping load (ISO/DIS 14397-1) | 6,614 lbs |
| ...at full turn | 38 degree |
| Breakout force | 7,868.3 lbf |
| Hydraulic lifting capacity, max | 7,868.3 lbf |
| Fork payload 80% | 3,968 lbs |
| Max. dump height | 8′ 2.2″ ft in |
| Operating weight | 9,921 lbs |
| Battery voltage | 48 V |
| Battery capacity (standard) | 33 kWh |
| Battery capacity (optional) | 40 kWh |
| On board charging time 230 VAC 16A | < 6 h |
| Off board charging time 400 VAC 32A | < 2 h |
| Indicative runtime (depending on application) | Up to 8 hours |
Images for illustration purposes only. Production machines may differ in appearance and features; they may vary between markets and models. Specifications may change without prior notice. No warranty is provided until the machine has been purchased.

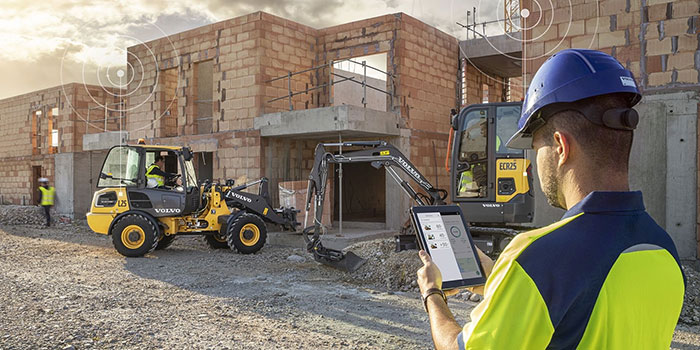

Unlock new opportunities for your business with the Volvo L20 Electric. The low noise level means you can work outside of standard hours and in noise sensitive environments. With zero-tailpipe emissions, it is also possible to work in low-carbon areas and indoor environments without the need for costly fume extraction systems.

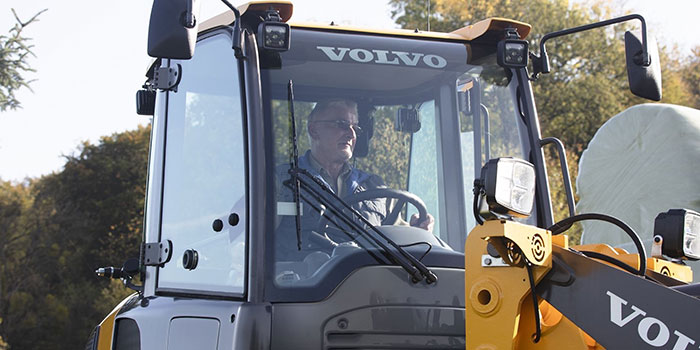

Experience all the industry-leading features you would expect from the world-class Volvo cab including wide entry, outstanding visibility and superior comfort levels. This is further enhanced by the significant reduction in noise, vibration and heat, as well as no exhaust fumes which the electric machine provides. The result is a cleaner and quieter jobsite, improving working conditions and communication for all jobsite staff.

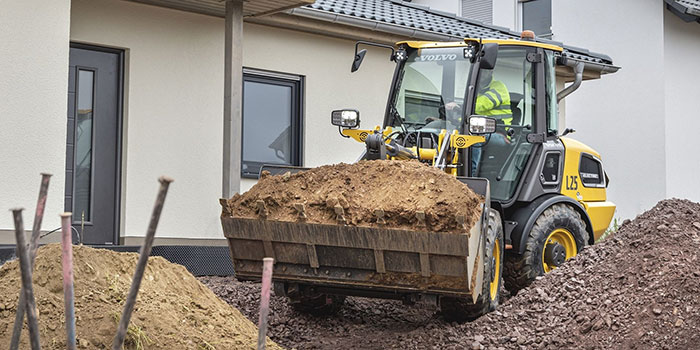

The Volvo L20 Electric delivers all the performance you would expect from a wheel loader in this size class, but with less noise and zero-emissions. The Parallel linkage makes it especially suited to pallet handling and fork applications, offering 100% parallel movements for unrivalled stability of the load and unobstructed forwards visibility. Rigid planetary axles with 100% differential locks offer maximum traction and minimal tire wear, complemented by the articulating-oscillating joint for the best off-road capability and stability.
Depending on the environment and task at hand the Volvo L20 Electric can deliver up to 6 hours of active work per charge. If you are considering whether an electric Volvo machine is the right fit for your operation just speak to your dealer to find out more – they can calculate the expected operating time and optimum charging solution based on your activities.

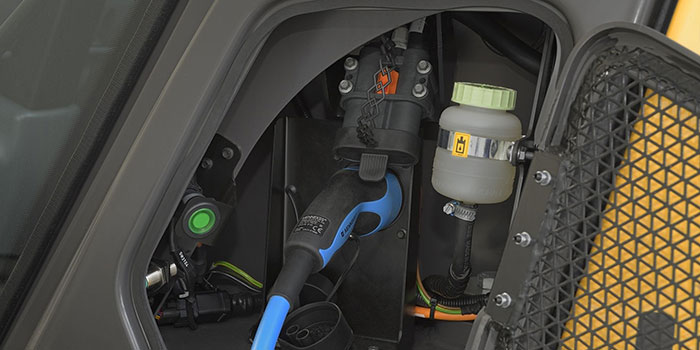

The Volvo L20 Electric comes with an integrated on-board charger which supplies a 6 kW power output to the batteries, allowing the machine to charge from 0 to 100% in under 6 hours. It comes with the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. When projects and applications demand faster charging, a range of optional fast off-board chargers are available for both indoor and outdoor use. These will charge the machine from 0 to 100% in less than 2 hours.

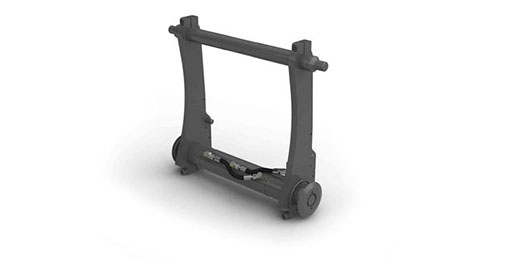

Attachment Brackets

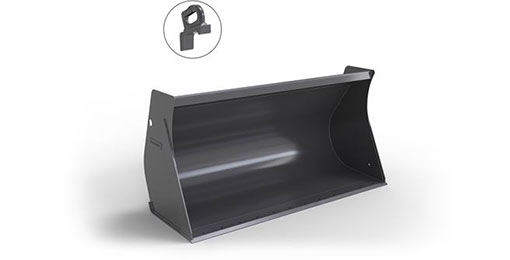

Buckets

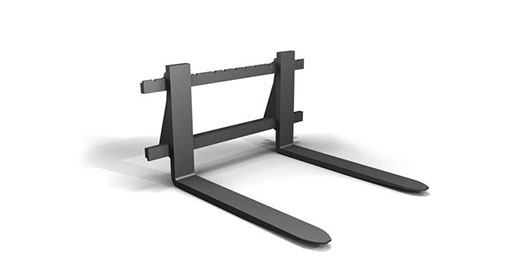

Forks

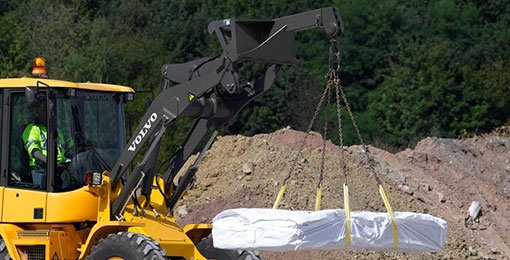

Material Arm
Contact us for in-stock options
